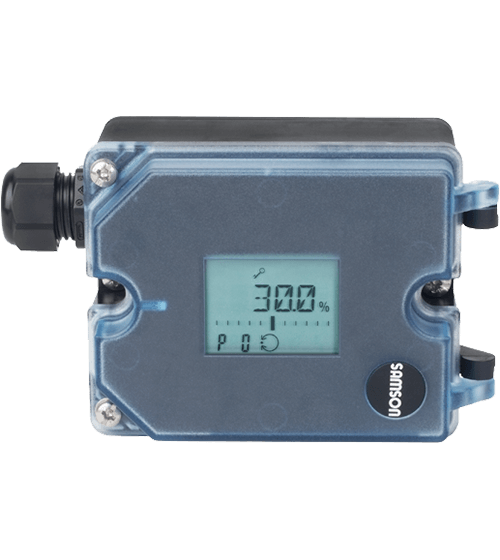

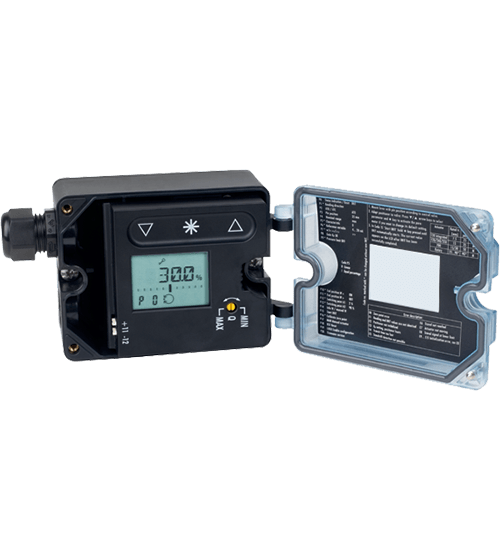

3725 Compact positioner
The Type 3725 electro-pneumatic positioner is designed to work with light industrial applications and control valve designs. This positioner is an ideal fit for these markets with its easy self-calibration and auto-tuning function and basic features.
FEATURES & BENEFITS
- Compact simple electro-pneumatic positioner design to address light industrial applications
- Proven SAMSON Positioner Technology with Automatic Initialization and High Control Accuracy
- Spring compression electrical connection do not require instrument screwdriver
- Unit will attach to both linear and rotary actuators, independent of Fail Safe Action or Moving Direction, and allows for the display to rotate 180
- Programmable via a scrollable menu list with three push button inputs
- Automatic calibration and initialization allows for easy of setup
SPECIFICATIONS
- Operation:Linear or rotary
- Travel/Rotation:50mm or 100°
- Display:Alphanumeric LCD
- Features: Auto calibration & tuning.
