3249 - ASEPTIC CONTROL VALVE

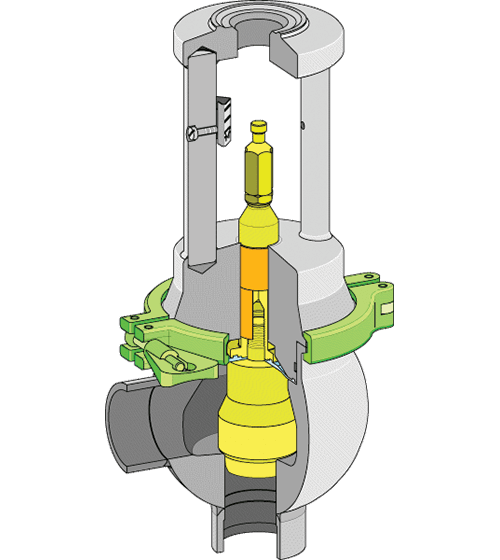

The Type 3349 aseptic angle control valve is designed for the strict sanitary requirements of the food, beverage, and pharmaceutical industries that includes the use of USP-VI diaphragm. The valve body is designed without cavities, having a smooth, polished, satin, or mirror finish on internal and external surfaces, and the stem guide is sealed by a diaphragm. A test connection enables the diaphragm to be monitored for leakages. This design can be cleaned and sterilized using the CIP or SIP methods.
The Type 3249 can be assembled with a pneumatic, electric, hydraulic, or electro-hydraulic actuator also offered by the SAMSON group to complete the control valve construction. These control valves are designed according to the modular assembly principle, can be equipped with SAMSON GROUP actuators and valve accessories such as positioners, limit switches, and solenoid valves.
FEATURES & BENEFITS
- Cast Stainless Steel Valve Body Free of Dead Space.
- Self-draining design suitable SIP/ CIP / DIP.
- Wetted sealing materials and lubricants comply with FDA/ USDA.
- Good stem guiding.
- Fewer pieces means less micro-organisms.
- Diaphragm leak detection.
- Open space between valve and actuator, clear for inspection
- Actuator is easily removed
- Easily detachable clamps connection between body and bonnet to change gaskets and plugs.
- Cleaning ability has been proved by EHEDG
SPECIFICATIONS
- Size: 1/2" to 4"
- ANSI Class: 150
- Std. Materials: Forged StainlesSteel A182 F316
- Temperature Range: 32 to 320℉ (0 to 160℃)
