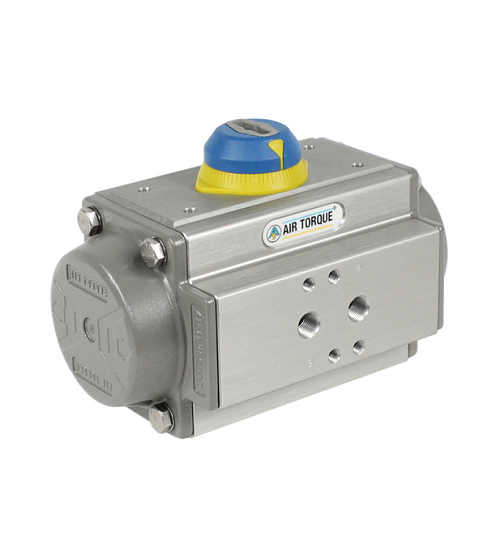

Air Torque-Pneumatic Rack & Pinion Rotary actuators
The AT pneumatic rack and pinion actuator is designed for all industrial applications. This actuator is a rotary motion device ideal for all types of rotary valves. The torque output of the actuator depends on the actuator area, pneumatic supply pressure, spring stiffness, distance traveled, initial compression of the spring, the number of springs internal to the actuator, etc.
FEATURES & BENEFITS
- Externally adjustable travel stops (+/- 4o°)
- Square-end position either diagonal or parallel
- Position indicator can be customized in steps of 45o°
- No special tools needed for mounting and conversion
- Power transmission without clearance thanks to involute serrations
- Direction of rotation can be reversed without additional components
- Special surface treatment method
- Designed for signal pressures up to 116 psi and for continuous operation at temperatures from -20 to 80 °C
SPECIFICATIONS
- Size:15 to 5000
- Max. Rotation:90°
- Max Torque:6306 Nm
- Options:Handwheel, Travel stops
