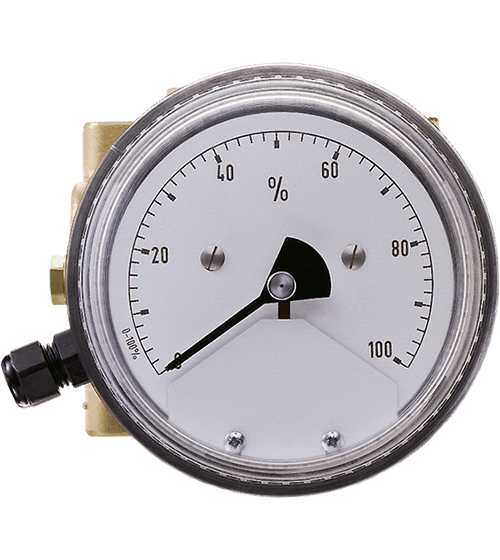

Media 5-Differential Pressure & Flow Meter
The Type Media 5 is a transmitter for measuring and indicating the differential pressure or measured variables derived from it making the valve suitable for gases or liquids. Measuring ranges are between 0 to 0.5 and 0 to 53 psi static pressures up to 725 psi. Optionally it can be equipped a with limit switch with three inductive alarm contacts. Measurement tasks include: liquid level measurement in pressure tanks, especially for cryogenic gases; differential pressure measurement between flow and return flow pipe; pressure drop measurement across valves and filters; and flow rate measurement according to the differential pressure method.
FEATURES & BENEFITS
- Suitable for liquids, gases or vapors
- Limit switch easily retrofitted
- Over-loadable on one side up to the permissible static pressure
- Suitable for field installation (degree of protection IP 54/ IP 65) and panel mounting
- Zero adjustment from the front
- Adjustment of measuring span 1:2
- Housing of indicating unit with burst protection
- Directly connectable valve block (optional) with connection to monitor the tank pressure and with connection for pressure switch
